Fixed Frequency Gunn Oscillators




                          Typical             Frequency .004% / °C        Typical       GaAs    2.0 - 8.0 Vdc

                          Stability:           Power       0.02 dB / °C        Bias:                      400 - 1300 mA

                                                                                                                  InP        4.0 - 12.0 Vdc

                                                                                                                               100 - 500 mA

                         Options:           Second output port

                        Available:         (option "D")

                                                  SMA Bias connector

                                                  (option "S")

                                                  Gunn bias power supplies

                                                  Custom Units

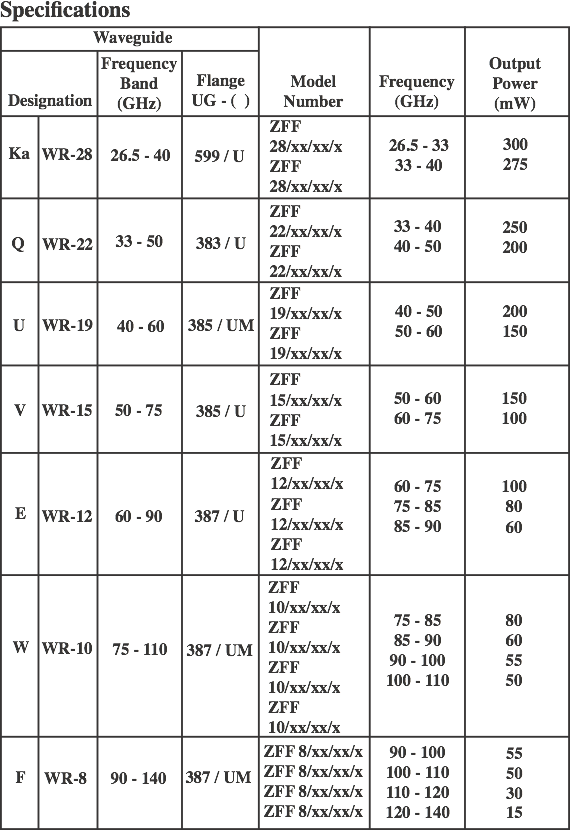

 Ordering Information

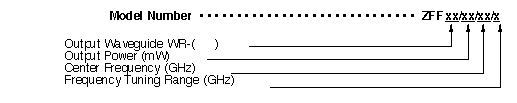

Example:   To order a Gunn Oscillator for operation at 94GHz with ± 50 MHz bias tuning, a minimum output power of 50 mW, a WR-10 waveguide, and a standard UG-387/UM flange pattern, specify a ZFF 10/50/94/0.1   Subject to change without notice.




ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786

Tel: (909) 985-9299    e-mail:  zax@millimeterwave.com




Return to ZAX Millimeter Home Page



Fixed Frequency Gunn Oscillators

FEATURES


  1. •18 GHz to 170 GHz Models

  2. •High Output Power

  3. •Bias Tuning Available

  4. •InP Models Provide High Efficiency

  5. •Reliable Operation

  6. •High Quality Workmanship

  7. •Custom Units Available
