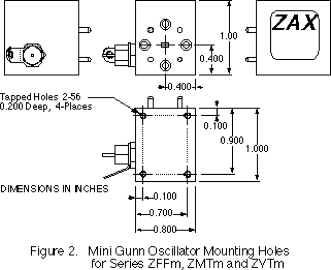

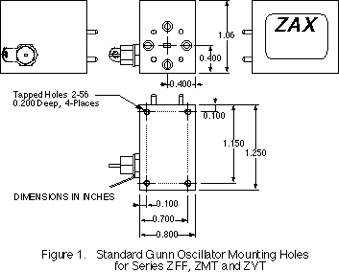

ZAX standard mounting hole pattern for series ZFF, ZMT, and ZVT Gunn oscillators in WR-15, WR-12, WR-10, WR-8 and WR-6 waveguide bands are illustrated in Figure 1. below. Mounting hole patterns for ZFFm, ZMTm, and ZVTm Mini-Gunn oscillators are illustrated in Figure 2. below.
