Mechanically Tuned Oscillators



            Typical          Frequency .004% / °C            Typical     GaAs 2.0 - 8.0 Vdc

            Stability:       Power 0.05 dB / °C                 Bias:                   400 - 1300 mA

                                                                                                   InP     4.0 - 12.0 Vdc

                                                                                                             100 - 500 mA

             Options:       Extended tuning range

                                  SMA Bias connector

                                  (option "S")

                                  Gunn bias power supplies

                                  Custom Units



 Ordering Information

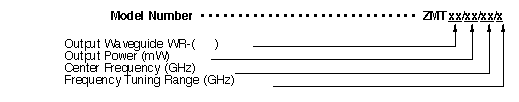

Example:  To order a Gunn Oscillator mechanically tunable from 93 to 95 GHz with a minimum output power of 20 mW over the tuning range, a WR-10 output waveguide, and a standard UG-387/UM flange pattern,  specify a ZMT 10/20/94/2.  Subject to change without notice.




ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786

Tel: (909) 985-9299    e-mail:  zax@millimeterwave.com



Return to ZAX Millimeter Home Page



Mechanically Tuned Gunn Oscillators

FEATURES


  1. •18 GHz to 120 GHz Models

  2. •Single Micrometer Tuner

  3. •Monotonic Operation

  4. •High Output Power

  5. •High Quality Workmanship

  6. •Custom Units Available

  7. •2nd Micrometer Optional
