Subharmonic Mixers




 FEATURES

  1.   40 GHz to 350 GHz Models

  2.    Low Noise Figures

  3.    fc /2 and fc /4 Designs

  4.    Utilize Economical Local Oscillators

  5.    Compact Rugged Package Design

  6.    Integrated IF Amplifiers Available

  7.    Integrated LO Available

  8.    Custom Units Available





        Subharmonically Pumped Mixers













Typical LO Input Power Requirement : +13 dBm (20 mW)



                               Options Available:   •  micrometer driven tuners

                                                                •  integrated IF amplifier

                                                                •  custom units


                     Ordering Information







                        Also specify the following:   LO frequency range

                                                                      Flange patterns ( if non standard )

                                                                      IF frequency range

                                                                      IF connector ( if other than SMA )

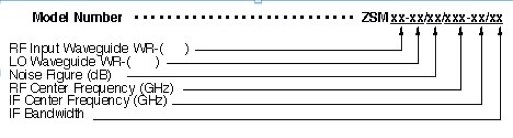

                     Example:   To order a Subharmonically Pumped Mixer for operation at an RF

                   frequency of 175 GHz to 181 GHz and 185 GHz to 191 GHz in WR-5 waveguide,

                   with an LO frequency of 183 GHz in WR-10 waveguide, an IF frequency of  2.0

                   GHz to 8.0 GHz, and a maximum DSB noise figure of 11 dB, specify : ZSM

                   5-10/11/183-5/6.     Subject to change without notice.
