Varactor Tuned Gunn Oscillators



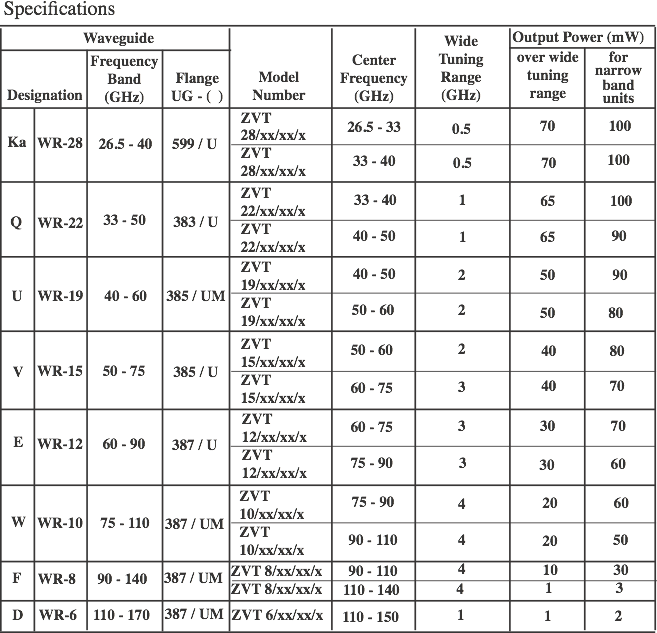

                        Typical              Frequency .004% / °C         Typical        GaAs   2.0 - 8.0 Vdc

                        Stability:            Power     0.05 dB / °C         Bias:                        400 - 1300 mA

                                                                                                                   InP      4.0 - 12.0 Vdc

                                                                                                                              100 - 500 mA

                         Options:           Second output port

                                                  (option "D")

                                                  SMA Bias connector

                                                  (option "S")

                                                  Gunn bias power supplies

                                                  Extended tuning range

                                                  Temperature controlled housing

                                                  Custom Units



 Ordering Information

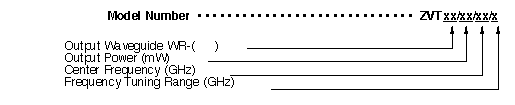

Example:  To order a Varactor Tuned Gunn Oscillator mechanically tunable from 92 to 94 GHz with a minimum output power of 20 mW over the tuning range, a WR-10 output waveguide, and a standard UG-387/UM flange pattern, specify a ZVT 10/20/93/2.  Subject to change without notice.




ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786

Tel: (909) 985-9299    e-mail:  zax@millimeterwave.com




Return to ZAX Millimeter Home Page




Varactor Tuned Gunn Oscillators

             FEATURES


  1. • 18 GHz to 150 GHz Models

  2. • Monotonic Operation

  3. • High Output Power

  4. • Excellent Voltage-frequency

   Linearity

  1. • Phase Lockable

  2. • High Quality Workmanship

  3. • Custom Units Available
