Balanced Mixers

Balanced Mixers

Specifications

RF Waveguide

 Model Number

 Minimum DSB
Noise Figure
(dB)

 Designation

 Frequency
Band (GHz)

 Flange
UG - (   )
 Ka  WR-28  26.5 - 40  599 / U  ZBM 28/xx/xxx-xx/xx  4
 Q  WR-22  30 - 50  383 / U  ZBM 22/xx/xxx-xx/xx  4
 U  WR-19  40 - 60  385 / UM  ZBM 19/xx/xxx-xx/xx  4.2
 V  WR-15  50 - 75  385 / U  ZBM 15/xx/xxx-xx/xx  4.4
 E  WR-12  60 - 90  387 / U  ZBM 12/xx/xxx-xx/xx  4.5
 W  WR-10  75 - 110  387 / UM  ZBM 10/xx/xxx-xx/xx  4.8
 F  WR-8  90 - 140  387 / UM  ZBM 8/xx/xxx-xx/xx  5.9
 D  WR-6.5  110 - 170  387 / UM  ZBM 6.5/xx/xxx-xx/xx  6.4
 WR-5  140 - 220  387 / UM  ZBM 5/xx/xxx-xx/xx  7.5

                                                      Typical LO Input Requirement:  +10 dBm

 Options Available:
  • diode bias for operations with low L.O. power
  • micrometer driven tuners
  • integrated IF amplifier
  • custom units

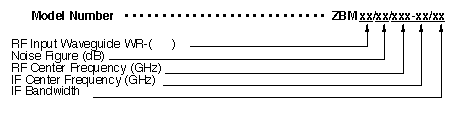

 Ordering Information



 Also specify the following: LO frequency and range
Flange patterns ( if non standard )
IF connector ( if other than SMA )
 Example:    To order a Balanced Mixer for operation at an RF frequency of 146 GHz to 148 GHz and 152 GHz to 154 GHz                          with an LO frequency of 150 GHz, with both RF and LO in WR-6 waveguide, and an IF frequency of 2.0-4.0 GHz                           and a maximum double sideband (DSB) noise figure of 5.5 dB, specify : ZBM 6/5.5/150-3/2.


Subject to change without notice.




ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786
Tel: (909) 985-9299     e-Mail: zax@millimeterwave.com
