Gunn Oscillators

  • 35 GHz to 170 GHz Models
  • Fixed Frequency
  • Mechanically Tuned
    (Single Tuner and Dual Tuner)
  • Varactor Tuned
  • Temperature Stabilized
  • Cavity Stabilized
Fixed Frequency     Mechanically Tuned     Varactor Tuned

Mixers
  • 35 GHz to 350 GHz
  • Balanced
  • Subharmonic
  • Harmonic
  • Single Ended
  • Cryogenic

 Balanced Mixer     Subharmonic Mixer    Harmonic Mixer

 Antennas

Corrugated Horn Antennas
Horn Antennas
Horn Lens / Feed Horn-Lens Antennas
Patch Antennas


  • 10 GHz to 325 GHz Designs
  • Cassegrain
  • Corrugated Feedhorns
  • Horn Lenses
  • Offset Reflectors
  • Patch Antennas
  • Scalar Feeds

Calibration Loads / Targets
  • 35 GHz to 600 GHz Designs
  • High Emissivity
  • Broadband Performance
  • Solid Absorber or Metal Cores
  • Optional Temperature Sensors
  • Optional Shrouds
  • Optional Heaters

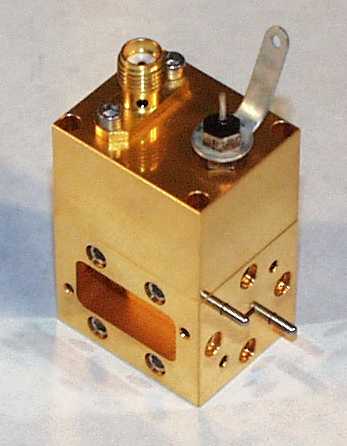

PIN Switches
  • 26 - 115 GHz Designs
  • Up To 40 dB Isolation
  • < 100 nsecs Switching Speed
  • Integrated TTL Drivers


Integrated Subsystems



Systems, Radiometers, Radar, Imagers . . . .

Products for Immediate or Short Notice Delivery
