Fixed Frequency Gunn Oscillators



 FEATURES

  • 18 GHz to 170 GHz Models
  • High Output Power
  • Bias Tuning Available
  • InP Models Provide High Efficiency
  • Reliable Operation
  • High Quality Workmanship
  • Custom Units Available


Fixed Frequency Gunn Oscillators

Specifications

 Waveguide

 Model Number

 Frequency
( GHz )

 Output Power
( mW )

 Designation

 Frequency
Band  (GHz)

 Flange
UG - (  )

 Ka

 WR-28

 26.5 - 40

 599 / U
ZFF 28/xx/xx/x
ZFF 28/xx/xx/x

 26.5 - 33
33 - 40

 300
275

 Q

 WR-22

 33 - 50

 383 / U
ZFF 22/xx/xx/x
ZFF 22/xx/xx/x

 33 - 40
40 - 50

 250
200

 U

 WR-19

 40 - 60

 385 / UM
ZFF 19/xx/xx/x
ZFF 19/xx/xx/x

 40 - 50
50 - 60

 200
150

 V

 WR-15

 50 - 75

 385 / U
ZFF 15/xx/xx/x
ZFF 15/xx/xx/x

 50 - 60
60 - 75

 150
100

 E

 WR-12

 60 - 90

 387 / U
ZFF 12/xx/xx/x
ZFF 12/xx/xx/x
ZFF 12/xx/xx/x

 60 - 75
75 - 85
85 - 90

 100
80
60

 W

 WR-10

 75 - 110

 387 / UM
ZFF 10/xx/xx/x
ZFF 10/xx/xx/x
ZFF 10/xx/xx/x
ZFF 10/xx/xx/x

 75 - 85
85 - 90
90 - 100
100 - 110

 80
60
55
50

 F

 WR-8

 90 - 140

 387 / UM
ZFF 8/xx/xx/x
ZFF 8/xx/xx/x
ZFF 8/xx/xx/x
ZFF 8/xx/xx/x

 90 - 100
100 - 110
110 - 120
120 - 140

 55
50
30
15
 Typical Stability: Frequency .004% / °C
Power      0.05 dB / °C
 Typical Bias: GaAs   2.0 - 8.0 Vdc
            400 - 1300 mA
InP       4.0 - 12.0 Vdc
            100 - 500 mA
 Options Available: Second output port (option "D")
SMA Bias connector (option "S")
Gunn bias power supplies
Custom Units

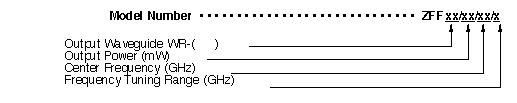

 Ordering Information


 Example:         To order a Gunn Oscillator for operation at 94GHz with ± 50 MHz bias tuning, a minimum output power
                              of 50 mW, a WR-10 waveguide, and a standard UG-387/UM flange pattern, specify a ZFF 10/50/94/0.1

 Subject to change without notice.


ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786
Tel: (909) 985-9299     e-Mail: zax@millimeterwave.com
