Mechanically Tuned Gunn Oscillators



FEATURES

  • 18 GHz to 120 GHz Models
  • Single Micrometer Tuner
  • Monotonic Operation
  • High Output Power
  • High Quality Workmanship
  • Custom Units Available
  • 2nd Micrometer Optional

Mechanically Tuned Gunn Oscillators

Specifications

 Waveguide  Model Number  Center
Frequency
( GHz )
 Wide
Tuning Range
( GHz )
 Output Power (mW)
 Designation Frequency
Band (GHz)
 Flange
UG - (   )
 over wide
tuning range
 for narrow
band units
 Ka  WR-28  26.5 - 40  599 / U ZMT 28/xx/xx/x  26.5 - 33  2  150  175
ZMT 28/xx/xx/x  33 - 40  2  140  150
 Q  WR-22  33 - 50  383 / U ZMT 22/xx/xx/x  33 - 40  2  120  130
ZMT 22/xx/xx/x  40 - 50  3  110  120
 U  WR-19  40 - 60  385 / UM ZMT 19/xx/xx/x  40 - 50  3  100  110
ZMT 19/xx/xx/x  50 - 60  4  80  100
 V  WR-15  50 - 75  385 / U ZMT 15/xx/xx/x  50 - 60  5  75  90
ZMT 15/xx/xx/x   60 - 75  6  55  80
 E  WR-12  60 - 90  387 / U ZMT 12/xx/xx/x  60 - 75  7  50  80
ZMT 12/xx/xx/x   75 - 90  8  45  65
 W  WR-10  75 - 110  387 / UM ZMT 10/xx/xx/x   75 - 90  8  40  60
ZMT 10/xx/xx/x   90 - 110  6  25  55
 F  WR-8  90 - 140  387 / UM ZMT 8/xx/xx/x  90 - 110  6  15  45
ZMT 8/xx/xx/x  110 - 140  5  1  15

 Typical Stability: Frequency .004% / °C
Power 0.05 dB / °C
 Typical Bias:  GaAs 2.0 - 8.0 Vdc
           400 - 1300 mA
InP     4.0 - 12.0 Vdc
            100 - 500 mA
 Options Available: Extended tuning range
SMA Bias connector (option "S")
Gunn bias power supplies
Custom Units

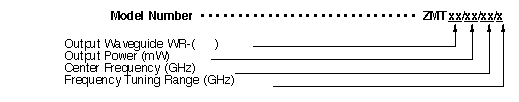

 Ordering Information


 Example:         To order a Gunn Oscillator mechanically tunable from 93 to 95 GHz with a minimum output power
                              of 20 mW over the tuning range, a WR-10 output waveguide, and a standard UG-387/UM flange pattern,                               specify a ZMT 10/20/94/2.

 Subject to change without notice.


ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786
