Subharmonic Mixers



 FEATURES

  • 40 GHz to 350 GHz Models
  • Low Noise Figures
  • fc /2 and fc /4 Designs
  • Utilize Economical Local Oscillators
  • Compact Rugged Package Design
  • Integrated IF Amplifiers Available
  • Integrated LO Available
  • Custom Units Available

Subharmonically Pumped Mixers

Specifications

 RF Waveguide  Model Number
 Minimum DSB
Noise Figure
( dB )



Designation

Frequency
Band (GHz)
Flange
UG-(  )
 Q  WR-22  33-50  383/U  ZSM 22-xx/xx/xxx-xx/xx  5
 U  WR-19  40-60  385/UM  ZSM 19-xx/xx/xxx-xx/xx  5
 V  WR-15  50-75  385/U  ZSM 15-xx/xx/xxx-xx/xx  5.5
 E  WR-12  60-90  387/U  ZSM 12-xx/xx/xxx-xx/xx  5.5
 W  WR-10  75-110  387/UM  ZSM 10-xx/xx/xxx-xx/xx  6.0
 F  WR-8  90-140  387/UM  ZSM 8-xx/xx/xxx-xx/xx  6.5
 D  WR-6.5  110-170  387/UM  ZSM 6.5-xx/xx/xxx-xx/xx  7.0
  G  WR-5  140-220  387/UM  ZSM 5-xx/xx/xxx-xx/xx  8.0

Typical LO Input Power Requirement : +13 dBm
 Options Available:
  • diode bias for operations with low L.O. power
  • micrometer driven tuners
  • integrated IF amplifier
  • custom units

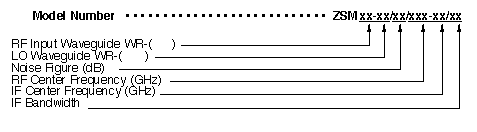

 Ordering Information



 Also specify the following: LO frequency range
Flange patterns ( if non standard )
IF frequency range
IF connector ( if other than SMA )
 Example:   To order a Subharmonically Pumped Mixer for operation at an RF frequency of 175 GHz to 181 GHz and 185                         GHz to 191 GHz in WR-5 waveguide, with an LO frequency of 183 GHz in WR-10 waveguide, an IF frequency
                       of  2.0 GHz to 8.0 GHz, and a maximum DSB noise figure of 11 dB, specify : ZSM 5-10/11/183-5/6.


Subject to change without notice.



ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786
