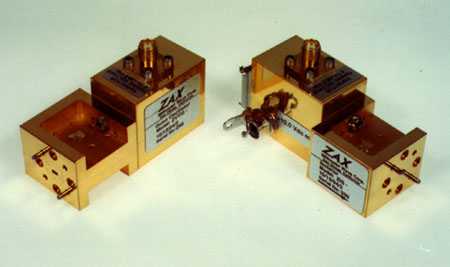

Varactor Tuned Gunn Oscillators





     FEATURES

  • 18 GHz to 150 GHz Models
  • Monotonic Operation
  • High Output Power
  • Excellent Voltage-frequency Linearity
  • Phase Lockable
  • High Quality Workmanship
  • Custom Units Available


Varactor Tuned Gunn Oscillators

Specifications

 Waveguide  Model Number  Center
Frequency
( GHz )
 Wide
Tuning Range
( GHz )
 Output Power (mW)
 Designation Frequency
Band (GHz)
 Flange
UG - (   )
 over wide
tuning range
 for narrow
band units
 Ka  WR-28  26.5 - 40  599 / U ZVT 28/xx/xx/x  26.5 - 33  0.5  70  100
ZVT 28/xx/xx/x  33 - 40  0.5  70  100
 Q  WR-22  33 - 50  383 / U ZVT 22/xx/xx/x  33 - 40  1  65  100
ZVT 22/xx/xx/x  40 - 50  1  65  90
 U  WR-19  40 - 60  385 / UM ZVT 19/xx/xx/x  40 - 50  2  50  90
ZVT 19/xx/xx/x  50 - 60  2 50  80
 V  WR-15  50 - 75  385 / U ZVT 15/xx/xx/x  50 - 60  2  40  80
ZVT 15/xx/xx/x   60 - 75  3  40  70
 E  WR-12  60 - 90  387 / U ZVT 12/xx/xx/x  60 - 75  3  30  70
ZVT 12/xx/xx/x   75 - 90  3  30  60
 W  WR-10  75 - 110  387 / UM ZVT 10/xx/xx/x   75 - 90  4  20  60
ZVT 10/xx/xx/x   90 - 110  4  20  50
 F  WR-8  90 - 140  387 / UM ZVT 8/xx/xx/x  90 - 110  4  10  30
ZVT 8/xx/xx/x  110 - 140  4  1  3
 D  WR-6  110 - 170  387 / UM ZVT 6/xx/xx/x  110 - 150  1  1  2

 Typical Stability: Frequency .004% / °C
Power      0.05 dB / °C
 Typical Bias: GaAs   2.0 - 8.0 Vdc
           400 - 1300 mA
InP      4.0 - 12.0 Vdc
            100 - 500 mA
 Options Available: Second output port (option "D")
SMA Bias connector (option "S")
Gunn bias power supplies
Extended tuning range
Temperature controlled housing
Custom Units

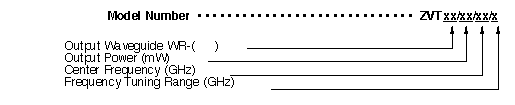

 Ordering Information


 Example:         To order a Varactor Tuned Gunn Oscillator mechanically tunable from 92 to 94 GHz with a minimum output                               power of 20 mW over the tuning range, a WR-10 output waveguide, and a standard UG-387/UM flange pattern,                               specify a ZVT 10/20/93/2.

 Subject to change without notice.



ZAX Millimeter Wave Corporation, 1558 Howard Access Rd, Upland, CA 91786
Tel: (909) 985-9299     e-Mail: zax@millimeterwave.com
